Hardware
- PLC control module: Industry level PLC central control module ensures the stability of continuous working and humanity devices management, such as Platform frequency conversion, white ink circulating, stir and cleaning, front and back button ganged, main ink barrel alarm, negative pressure ink leaking protection, automatic print log statistics

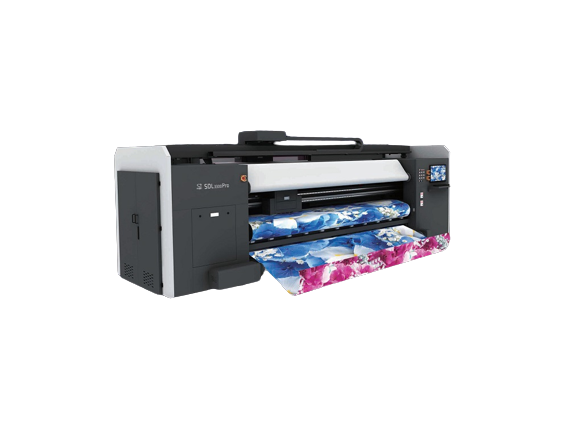

- SDL3300 equips 2 sets of medium drive devices, printing carriages, control systems, constant tension systems and ink systems. It also works as 2 single side printers. SDL3300 uses patient media rolling system. It can print the same and different images on media, with 100% alignment resolution. Solve the problem of lightbox colour difference in daytime and night.
- Heavy duty double sided designed frame, 230MM diameter rubber roll
- Constant tension media running system keeps media running perfectly and ensures perfect alignment resolution.
- Constant temperature water-cooling platform can keep platform resolution be 0.1mm and print 4P words with better clearness.
Software
- Composing after RIP: SKYJET software can achieve composing after RIP, and different print files can use different ICC curves in the same printing process, saving 30% working time.
- Colour management software: CALDERA Grand RIP, ICC colour adjustment function.
- Print statistics: The print log function can automatically note the print process and ink cost situation. It can supply evidence for print management and cost statistics.
- Automatic adjust double-sided printing alignment
- Automatic save print data for different media
