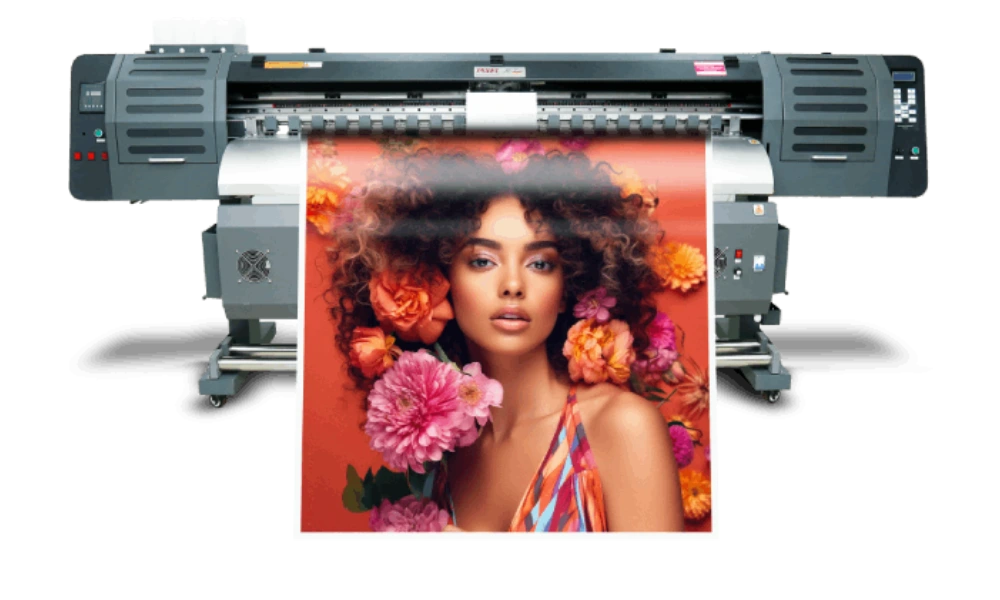

Pixeljet BOLT
6 feet eco-solvent printer
Limitless possibilities with economical investment
The Pixeljet® BOLT is designed for users looking for premium quality & high speed at an Economical investment. Equipped with Epson E1 i3200 printheads, this printer delivers fast and efficient performance. Plus, its precise machine parts ensure durability and fewer required maintenance appointments, resulting in a longer lifespan for the machine.
Description
Features –
- Three conductive heaters designed for efficient media heating.
- Equipped with an anti-crash sensor designed for fabric and soft materials.
- Front, middle, and rear heater and IR heating systems for drying.
- High level of precision in the machine parts ensures the long life of the machine and
fewer service intervals. - Boost the performance of your setup with a higher-grade model and configuration.
- Increased productivity with higher speeds up to 1800 sqft/hr.
- Supporting a wide range of applications like Fabric, SAV, PVC Banner, Backlit Fabric, and film.
Benefits:
- Sustainable printing
- These prints can be used indoors as well as outside in the open as inks have little or no odor.
- Highly Durable and economical prints.
- Higher resolution and higher print quality.
- Ideal flex banners, vinyl banners, cloth banners, canvas photo prints, stickers, glass film prints, and more.
SPECIFICATIONS
SPECIFICATIONS
| Technical Information | |
| Model | Pixeljet Bolt 1.8 m Eco-Solven |
| Technology | Micro Piezo drop on demand |
| Print Head | Epson E1 i3200 heads |
| Print head number | 2 heads |
| Maximum Print Size | 1800 mm |
| Print Speed | Draft Mode:40sqm 360X1200 dpi 2 pass |
| Production Mode: 38sqm 360 X 1800 3 pass | |
| Quality Mode:30sqm 720 X 1200 4 pass | |
| High Quality: 20sqm 720 X 1800 6 pass | |
| Media Type | Fabric, SAV, PVC Banner, Backlit Fabric & Film |
| Media Heater | Pre-heater, Middle heater, and Post heater up to 60’c |
| File Format | PDF, TIFF, JPEG, EPS, AI |
| No. of Colors | 4 colors CMYK |
| Ink Type | Eco solvent inks / Mild solvent inks |
| Max Material size | 1800 mm |
| Resolution | 1800 dpi |
| Interface | High-Speed USB |
| Cleaning System | Automatic capping and Wiping system |
| Print Interface | Maintop / Photo Print Software |
| Power Specification | 230 V, 10 A, 50 Hz 1 Phase power |
| Operational Environment | Temp 18-25”c Humidity 20-80 % Rh |
| Dimension & Weight | 2785 mm X 670 mm X 1300 mm 260 KG |
